Versatility in Vital Signs

Infinium Monitors

Designed for a fast paced work environment, the Infinium Omni (K)™ patient monitor offers an extremely simple and adaptable user interface. Patient information along with vital sign settings can be quickly modified to meet the needs of a patient’s changing condition. The Omni (K) offers a high resolution 10.5 inch touch screen to optimize the speed of patient care. The user can therefore make quick screen adjustments, set default settings, alarm limits, and manage up to 72 hours of detailed patient data.

Omni K Image.jpg
Omni Express Image1.2.JPG

From the general floor to high acuity surgeries, the Infinium Omni (K) series patient monitors are designed to fit-in and move amongst many patient care areas. The Omni (K)™ offers standard measurements of: non-invasive blood pressure, ECG with arrhythmia detection, motion tolerant SpO2, Temperature, and Respiration rate. End-tidal CO2, Anesthetic Agent measurement, Cardiac Output and Invasive blood pressure can added on-site by simply attaching our plug in modules. This field upgradability can allow the user to customize the monitor’s acuity level while the patient’s condition changes. If desired, the user can move from a basic vital signs monitor, to a continuous bed side monitor, to an operating room monitor while keeping the patient on a single monitor at all times.


The Omni (K)™ offers several connective solutions to network multiple monitors and/or manage patient data on an electronic medical records platform or a HL7 based hospital information system. The Omni (K) patient monitor offers Ethernet and RS-232 connections with an open source communication protocol. Infinium offers 2 levels of networking and connectivity. The Omni (K) is HL7 compliant. The HL7 network protocol will allow for all patient information and vital sign trends to be transferred and stored on a hospital information system. For non-HL7 medical facilities, there is the Infinium Omniview™ central station which allows the real time remote monitoring and network of up to 32 Omni patient monitors. The Omniview™ archives full disclosure of all patient vital sign trends. The patient data from the Omniview™ can be very simply saved, stored, printed, and, transferred.

BP and ECG.jpg

The Omni (K)™ offers a 3, 5, and 12 lead ECG platform. Arrhythmia detection and ST are also standard and measurable on all lead sets.

  • 3-Lead: I, II, III

  • 5-Lead: I, II, III, aVR, aVL, aVF, V

  • 12-Lead: I, II, III, aVR, aVL, aVF, V1~V6 (factory installed)

Capnography Image.JPG
Omni Express Image1.3.JPG

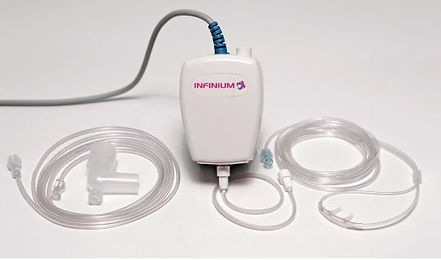

The Infinium Entide™ module s a field upgradable plug in module that can measure. End-tidal CO2 alone Both mainstream and sidestream modules are available for Endtidal CO2 and agent measurement.

The Entide™ utilizes a low flow (50ml/min) sidestream method that allows use for intubated and non-intubated applications. The Entide™ sample line connection incorporates filter cells to eliminate the potential of cross contamination Simple connection sample lines allows the Entide™ to be one of the industries lowest cost per patient End-tidal CO2 systems

Omni K Connect.jpg

The Omniview™ central station allows the wireless or hard-wired measurement for a network of up to 32 Omni patient monitors. The Omniview™ archives full disclosure of all patient information and vital sign trends. In real time the Omniview™ displays the patient’s numeric vital signs along with waveforms. The patient data from the Omniview™ can transferred to a EMR as a supplement to the patient’s file or integrated into a hospital information system.
